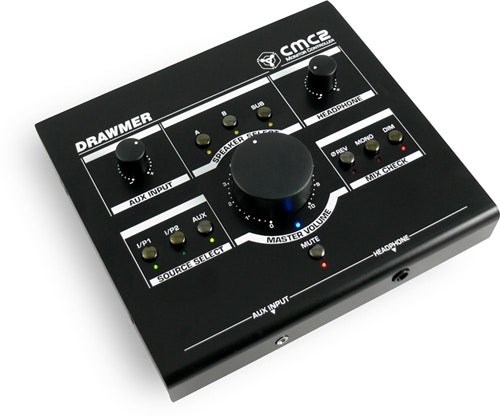

Drawmer CMC2

The CMC2 is a compact monitor controller that has been designed to provide the same top quality audio, transparency and accuracy of Drawmer's other monitor controllers, such as the MC2.1 and MC3.1, whilst retaining all the necessary features that the smaller project studio would require without the cost of the advanced features that would seldomly be used.

The CMC2 is very well connected: with 2 Stereo balanced jack inputs, plus a 3.5mm jack for your Smartphone/MP3 Player, with variable level control. It supports 2 sets of stereo monitors plus a sub-woofer, each with individual switches so you can activate them in any order, especially useful for A/B comparisons. In addition, it has a professional quality headphone output with a separate amplifier and level control, that provide the same audio quality and mix checking as the CMC2 does through the speakers. Key Mix check features such as Phase Reverse, Mono, Dim & Mute are also included, to enable you to examine the quality of your recordings with ease.

• Ultra low noise and transparent circuit design.
• Source switches can be active in any combination. 3 Inputs in Total - Two on ¼” balanced jacks and One 3.5mm Front Panel Aux for your Smartphone/Mp3 Player.
• 2x Speakers Plus a Mono Sub can be switched individually & simultaneously or give A/B comparisons.
• Timed relay protection on all speaker outputs to prevent power up/down bangs.
• A large volume knob incorporating a parallelled custom quad pot for excellent channel matching and smooth feel.
• A Headphone Amplifier with Individual Level Controls with easy access to the jack on the front.
• Front Panel 3.5mm AUX Input with Level Control for connecting MP3 player, smartphone or tablet etc.
• Mix Checking facilities Include Dim, Phase Reverse and Mono, as well as an easy access Mute switch.
• Kensington security slot (also called a K-Slot or Kensington lock).
• Very low profile desktop enclosure with a footprint of just 18x16cm.
• Rugged steel chassis and stylish brushed aluminium cover.
• Depth 164mm Width 183mm Height 45mm
• 1.1kg
