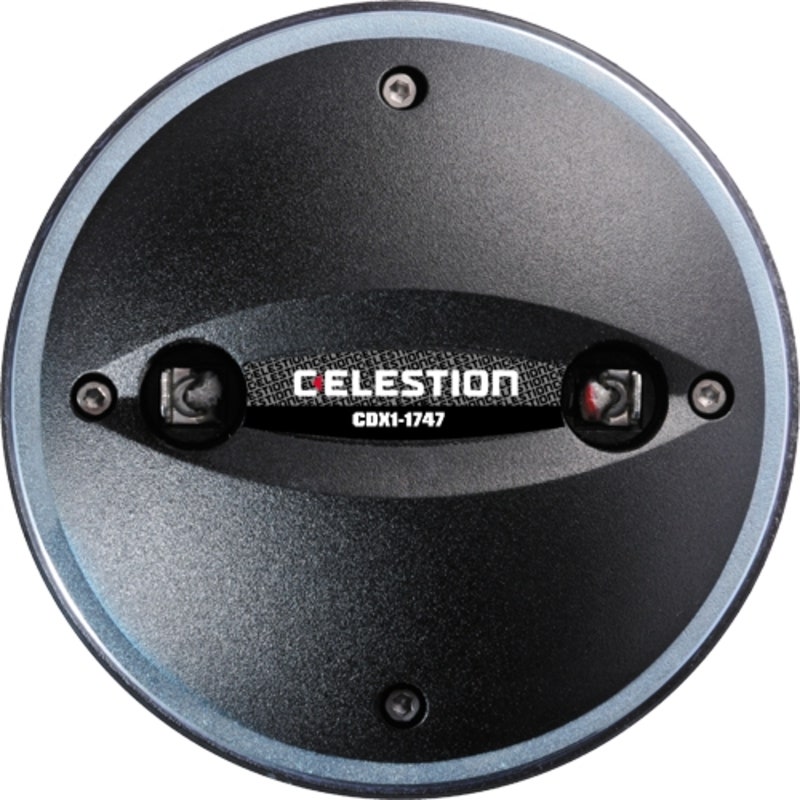

Celestion CDX1-1747 8R
Article number 22138481" exit, ferrite magnet, 1,75" voice coil compression driver. 40W RMS 110dB, 8ohm
Ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion
One piece PETP film diaphragm and surround
Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design
- Power rating: 40W RMS
- Nominal impedance: 8ohm
- Frequency range: 1200-20,000Hz
- Sensitivity: 110dB
- Recommended min. crossover: 2000Hz (12dB/oct)
- Voice coil diameter: 44mm/1.75in
- Diaphragm material: Polyimide
- Overall width: 120mm/4,7in
- Overall depth: 53mm/2.08in
- Fitting:Flange Flange (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD
- Throat exit: 25,4mm/1.0in
- Unit weight: 2,3kg/5.1lb
