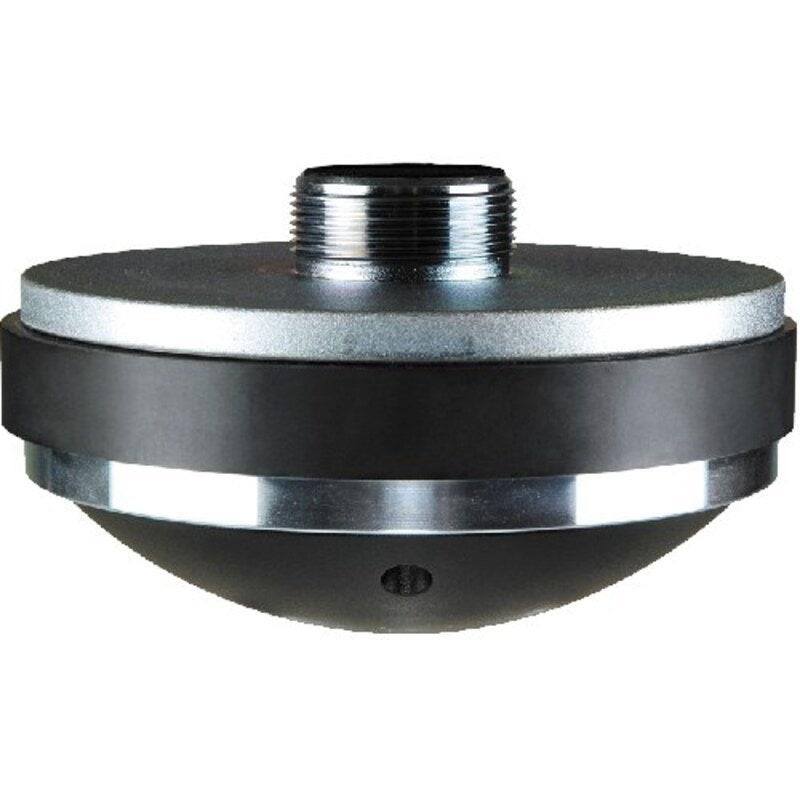

Celestion CDX1-1746 8R
Article number 22134871" exit, ferrite magnet, 1,75" voice coil compression driver with screwfitting. 40W RMS 110dB, 8ohm
Ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion
One piece PETP film diaphragm and surround
Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design
- Power rating: 40W RMS
- Nominal impedance: 8ohm
- Frequency range: 1200-20,000Hz
- Sensitivity: 110dB
- Recommended min. crossover: 2200Hz (12dB/oct)
- Voice coil diameter: 44mm/1.75in
- Diaphragm material: PETP Film
- Surround material: PETP Film
- Overall width: 120mm/4,7in
- Overall depth: 56mm/2.2in
- Fitting: Screw 35mm, 1.38in
- Throat exit: 25,4mm/1.0in
- Unit weight: 2,3kg/5.1lb
