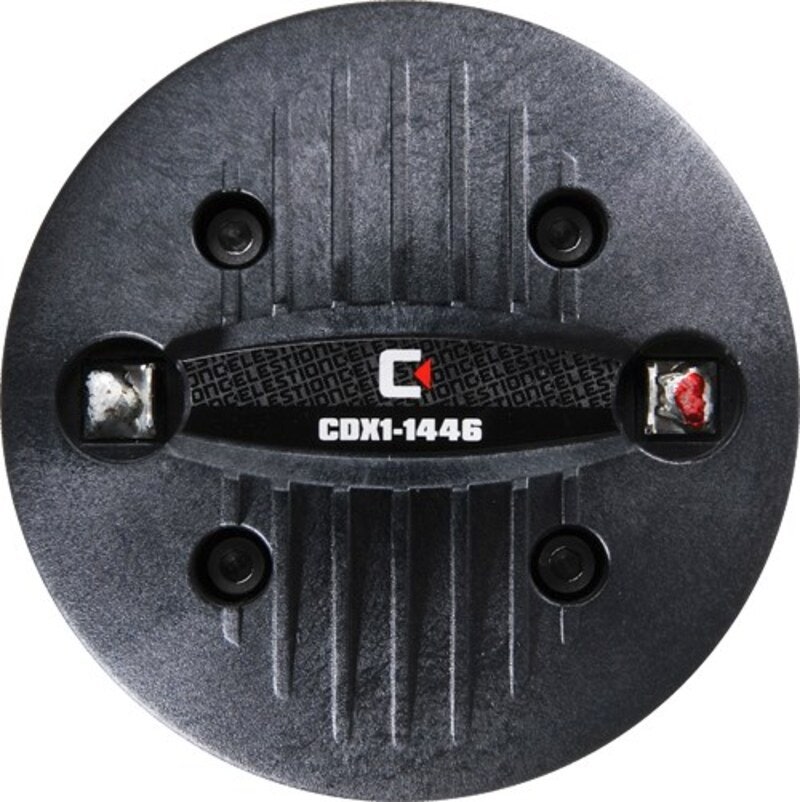

Celestion CDX1-1446 8R
Article number 22137961" exit, ferrite magnet, 1,4" voice coil compression driver with screwfitting. 20W RMS 106dB, 8ohm
Lightweight and compact ferrite magnet compression driver with 1.4" copper clad aluminium voice coil
One piece PETP diaphragm and surround Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
Suitable for 2-way and 3-way systems
- Power rating: 20W RMS
- Nominal impedance: 8ohm
- Frequency range: 1500-20,000Hz
- Sensitivity: 106dB
- Recommended min. crossover: 2200Hz (12dB/oct)
- Voice coil diameter: 35mm/1.4in
- Diaphragm material: PETP Film
- Overall width: 90mm/3.54in
- Overall depth: 69mm/2.7in
- Fitting: Screw (35mm, 1.38in diameter
- Throat exit: 25,4mm/1.0in
- Unit weight: 1.1kg/2.2lb
