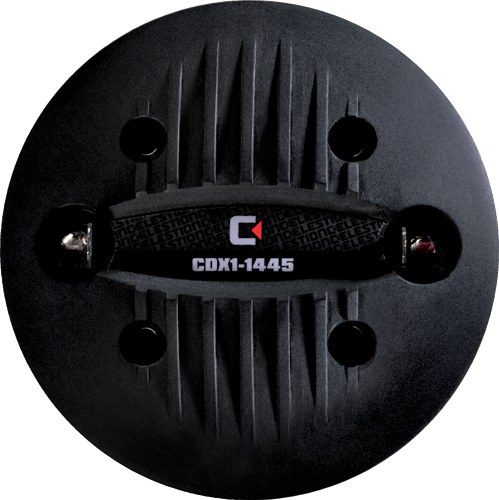

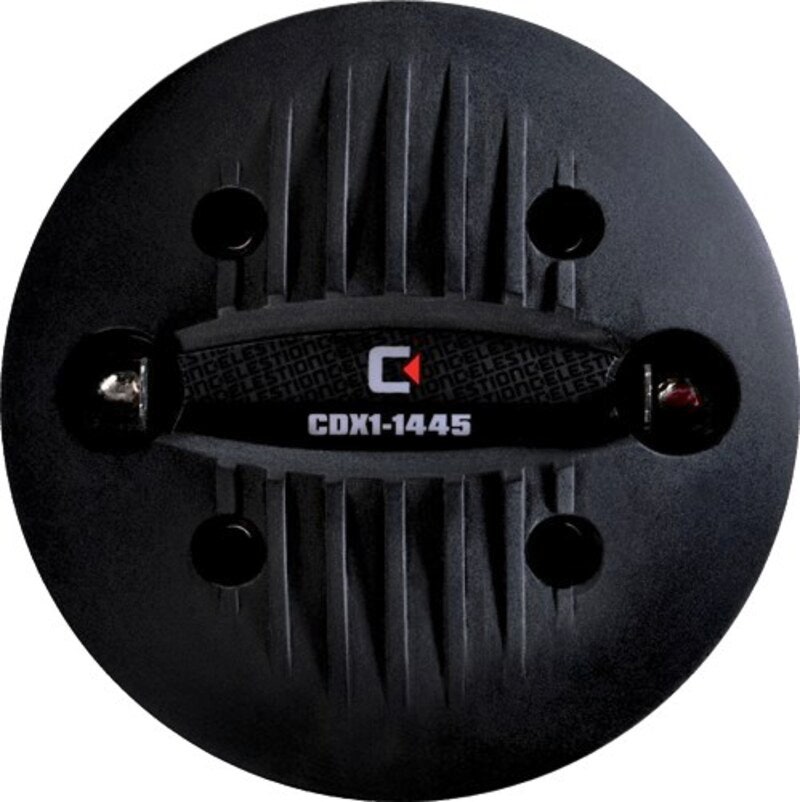

Celestion CDX1-1445 8R
Article number 22137621" exit, ferrite magnet, 1,4" voice coil compression driver. 20W RMS 106dB, 8ohm
Lightweight and compact ferrite magnet compression driver with 1.4" copper clad aluminium voice coil
One piece PETP diaphragm and surround Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
Suitable for 2-way and 3-way systems
- Power rating: 20W RMS
- Nominal impedance: 8ohm
- Frequency range: 1500-20,000Hz
- Sensitivity: 106dB
- Recommended min. crossover: 2200Hz (12dB/oct)
- Voice coil diameter: 35mm/1.4in
- Diaphragm material: PETP Film
- Surround material: PETP Film
- Overall width: 90mm/3.54in
- Overall depth: 52mm/2.3in
- Fitting:Flange (4 x M6 holes on 76mm, 3.0in PCD
- Throat exit: 25,4mm/1.0in
- Unit weight: 1kg/2.2lb
