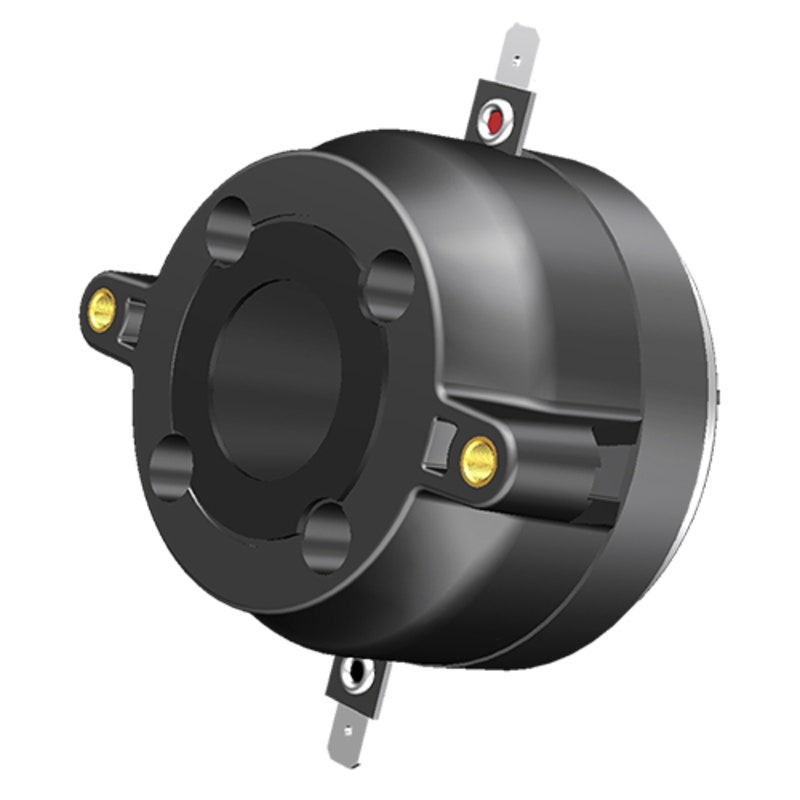

Celestion CDX1-1070 T5916 8R

Article number 2213336

1” exit light weight, low-profile ferrite magnet compression driver

Power rating: 20W RMS
Nominal impedance: 8ohm
Frequency range: 1500-20,000Hz
Sensitivity: 106dB
Recommended min. crossover: 2200Hz (12dB/oct)
Voice coil diameter: 25mm/1in
Voice coil material: Copper clad aluminium
Diaphragm material: PETP film
Surround material: PETP film
Overall width: 70mm/2.8in
Overall depth: 50mm/2in
Fitting:Flange (2 x M6 holes on 76mm, 3.0in PCD
Throat exit: 25mm/1.0in
Unit weight: 0.5kg/1.1lb
