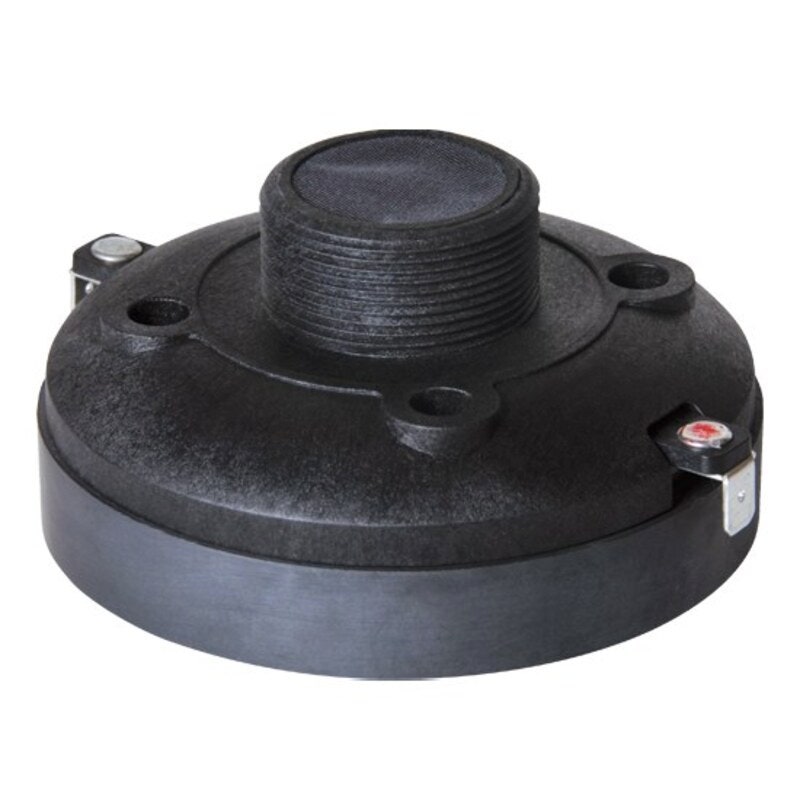

Celestion CDX1-1010 8R
Article number 22133291" exit, ferrite magnet, 1" voice coil compression driver. 15W RMS 107dB, 8ohm
Ideal for entry-level two-way and three-way sound reinforcement cabinets
Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic designPower rating: 15W RMS
Nominal impedance: 8ohm
Frequency range: 1500-20,000Hz
Sensitivity: 107dB
Recommended min. crossover: 2200Hz (12dB/oct)
Voice coil diameter: 25mm/1.0in
Voice coil material: Copper clad aluminium
Diaphragm and surround material: PETP film
Overall width: 90mm/3.54in
Overall depth: 52.8mm/2.08in
FittingScrew: (35mm/1.38in diameter)
Throat exit: 25mm/1.0in
Unit weight: 0.83kg/1.8ln
Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
