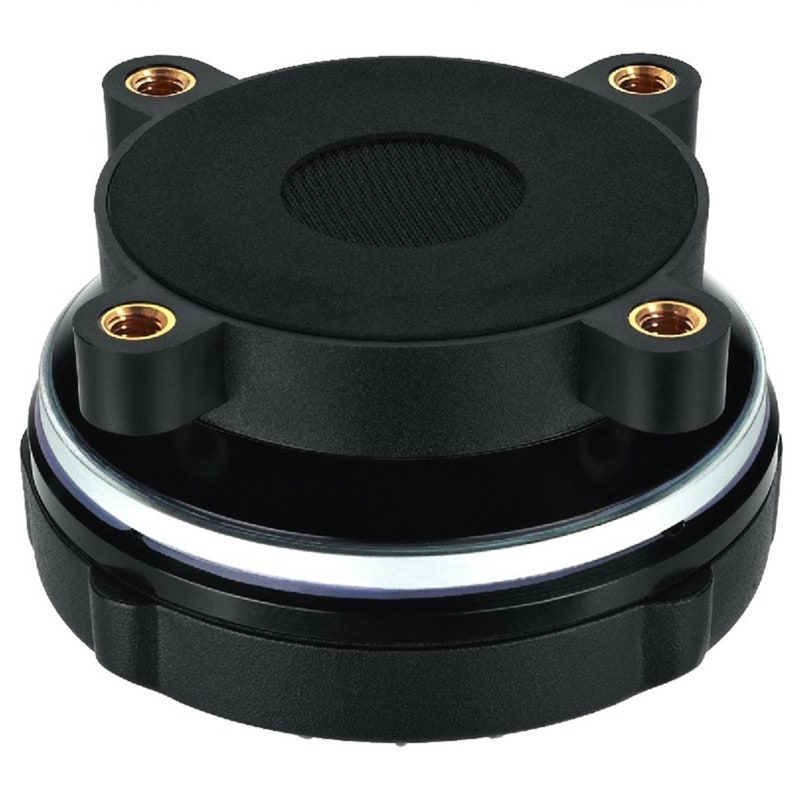

Celestion CDX1-1730 8R
Article number 22134851" exit, neodymium magnet, 1,75" voice coil compression driver. 40W RMS 110dB, 8ohm
Neodymium magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion
One piece PETP film diaphragm and surround
Advanced Finite Element Analysis (FEA) tools used to create a very light weight, high powered compression driver
- Power rating: 40W RMS
- Nominal impedance: 8ohm
- Frequency range: 1200-20,000Hz
- Sensitivity: 110dB
- Recommended min. crossover: 2200Hz (12dB/oct)
- Voice coil diameter: 44mm/1.75in
- Diaphragm material: PETP Film
- Surround material: PETP Film
- Overall width: 90mm/3.54in
- Overall depth: 55mm/2.3in
- Fitting:Flange (4 x M6 holes on 76mm, 3.0in PCD
- Throat exit: 25,4mm/1.0in
- Unit weight: 0,65kg/1.4lb
