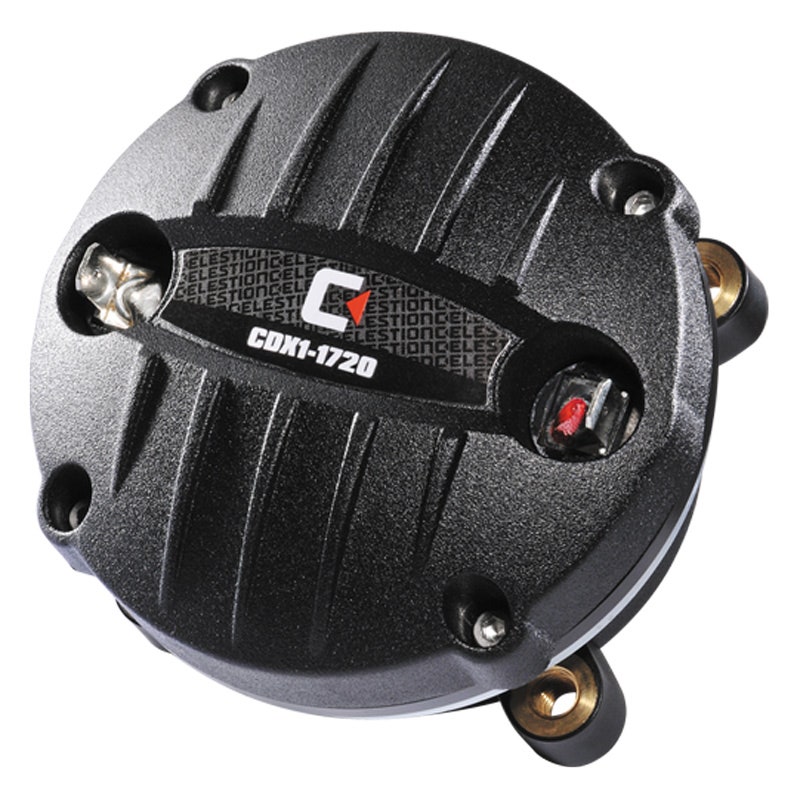

Celestion CDX1-1720 8R
Article number 22137131" exit, neodymium magnet, 1,75" voice coil compression driver. 50W RMS 107dB, 8ohm
Lightweight and compact compression driver featuring neodymium magnet and 1.75" diameter titanium diaphragm
Rolled polyimide surround improves stiffness control, further lowering distortion
Lower resonance enabling lower crossover frequency
Patented phase plug design method suppresses cavity resonances at frequencies higher than that of conventional designs.
Lower compression ratio reduces air non-linearity and allows for higher maximum SPL
Curved coherent wavefront, optimised for horn loading
- Power rating: 50W RMS
- Nominal impedance: 8ohm
- Frequency range: 800-20,000Hz
- Sensitivity: 107dB
- Recommended min. crossover: 1500Hz (12dB/oct)
- Voice coil diameter: 44mm/1.75in
- Diaphragm material: Titanium
- Surround material: Polymide
- Overall width: 90mm/3.54in
- Overall depth: 55mm/2.3in
- Fitting:Flange (4 x M6 holes on 76mm, 3.0in PCD
- Throat exit: 25,4mm/1.0in
- Unit weight: 0,65kg/1.4lb
