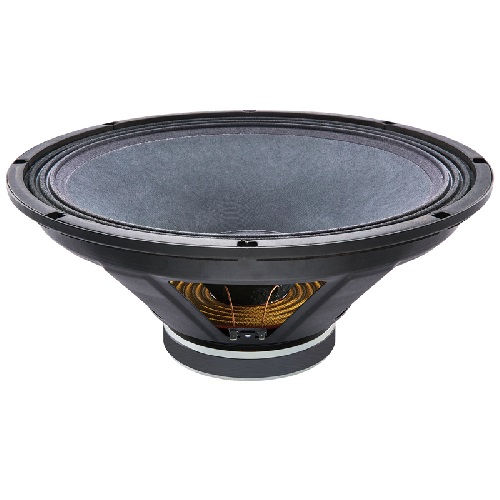

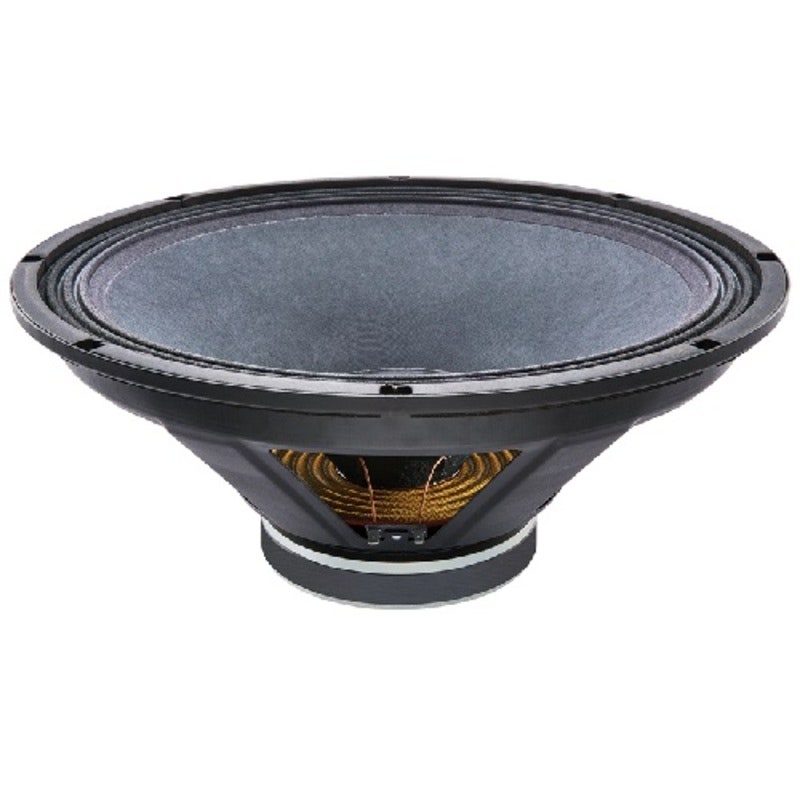

CELESTION TF1830

Article number 2216346

18" 4 ohm LF driver - perfect for DIY cabinet design applications

Balanced Airflow Venting provides enhanced cooling

Multi-layer voice coil

Compact, high flux, Dual Magnet Motor design

Nominal diameter: 457mm/18in

Power rating: 500Wrms

Continuous power rating: 1000W

Nominal impedance:4Ω

Sensitivity: 96dB

Frequency range: 35-1,000Hz

Voice coil diameter: 75mm/3in

Chassis type: Pressed Steel

Magnet type: Ferrite

Magnet weight: 1.8kg/65oz

Coil material: Round copper

Former material: Glass fibre

Cone material: Glass loaded paper with weather resistant impregnation Overall diameter: 460mm/18.1in

Overall depth: 209mm/8.22in

Cut-out diameter: 421mm/16.57in

Mounting slot dimensions: Ø8.3mm/0.32in

Number of mounting slots: 8

Mounting PCD range: 443.4mm/17.46in

Unit weight: 7.5kg
