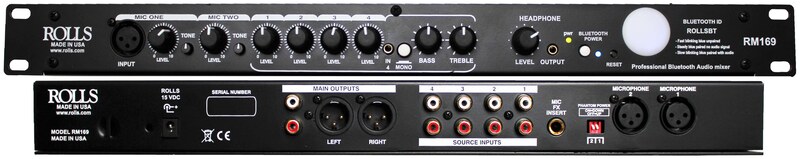

ROLLS RM169

The RM169 is a six channel Professional audio mixer with Bluetooth input. Two microphone inputs, and four stereo line RCA inputs, the RM169 is ideal for any installation where space is a consideration, without compromising audio quality. The Bluetooth input has extended range and exceptional audio quality. RCA and XLR balanced outputs jacks make the RM169 perfect for any application.

• Input Impedance: Mic: 600 Ohms XLR balanced Source: 22K Ohms RCA Mic Insert: 22K Ohms 1/4" TRS insert
• Weight: 2.3 kg
• Size: 48.3 x 4.5 x 10 cm
• Max Gain: Mic: 60 dB Source: 26 dB Tone Controls: /-12 dB 100 Hz Bass, /-12 dB 11kHz Treble Noise Floor: - 80 dB, THD: <.025%
• Output Impedance: 51 Ohms
• Output Level: 17 dBV max
• Phantom Power: 15 VDC
• In/Out Connectors: 5: XLR, 5: Stereo RCA, 1: 1/4" TRS, 2: 3.5mm
• Headphone Output Impedance: > 8 Ohms
• Max Input Level: Mic: -14 dBV Mic level Source: 24 dBV
• Current drain 100ma 15vdc
• Two XLR Microphone Inputs (including a paralleled front panel input).
• Individually switchable phantom power.
• Four Stereo Source Inputs, Four RCA and one front panel stereo 3.5mm.
• 1/4" TRS Mic Insert jack.
• Stereo RCA and XLR Outputs.
• Headphone output on front panel with volume control.
• Level control for Bluetooth input signal.
