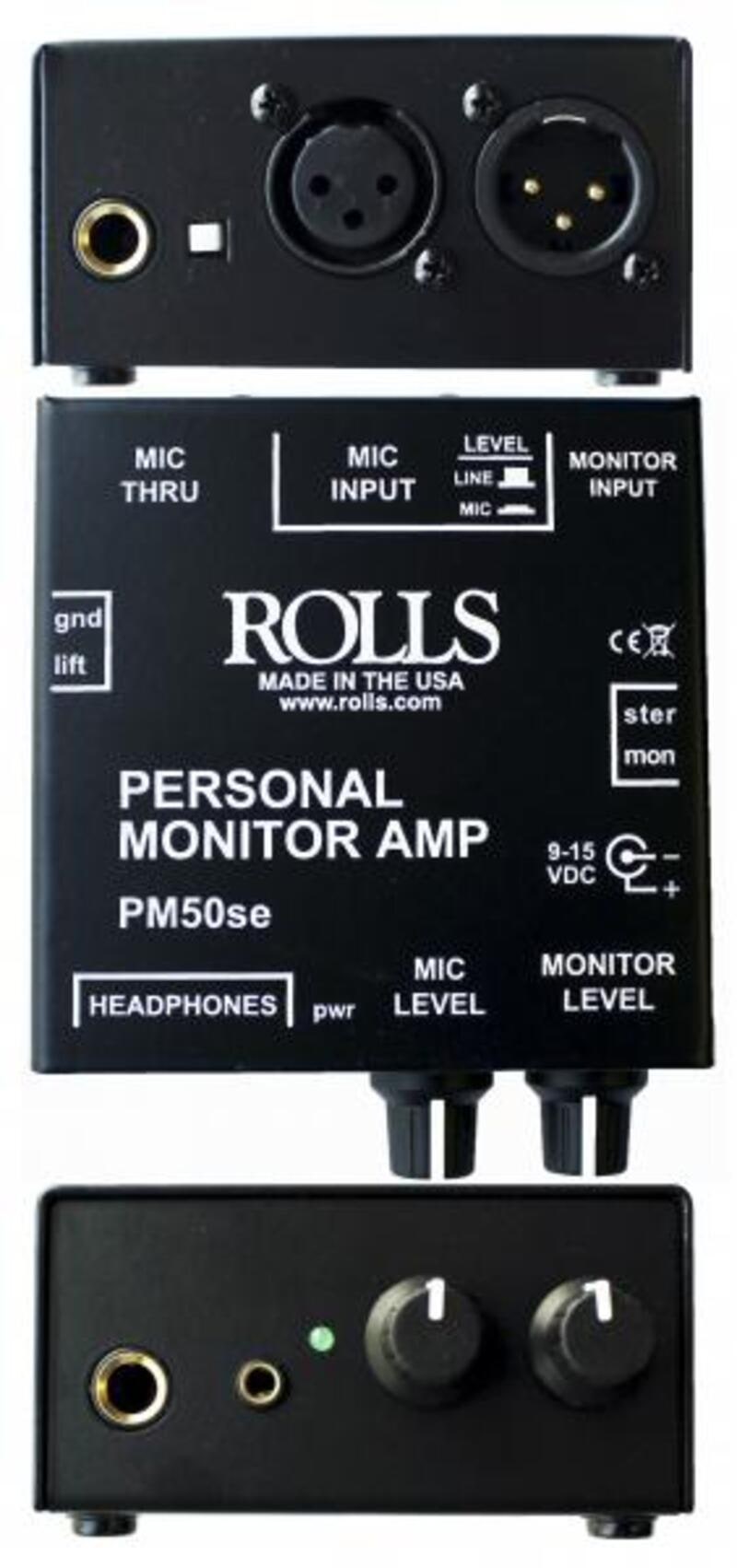

The PM50se mixes a stereo or mono line-level Monitor signal with a microphone or line level XLR signal to a set of headphones. It has a monitor level control, mic/XLR level control, mic/line pass through XLR jack, two headphone output jacks, and a stereo or mono TRS or TS 1/4" monitor input jack. Possible users may be drummers who need to hear a click track, choir singers who need to hear themselves, podcast, recording or many other applications. The power adapter is included.
- nputs: -20 dB max XLR 1K balanced, 20 dB monitor
- Outputs: 1/4", and 1/8" (3.5mm) 8 ohm or greater
- Gain: 20 dB 1/4", 50 dB XLR
- Frequency Response: 3Hz to 100kHz
- S/N Ratio: 90 dB
- Size: 3" X 2.5" X 1.25"
- Weight: 1 lb (.45 kg)
- Current drain 60ma nominal no load 15vdc
- Mic or Line Level XLR input
- XLR Mic or Line Pass Thru
- Ground Lift on XLR Thru
- Mono or Stereo 1/4" Monitor Input
- 1/4" and 1/8" Phone Outputs
