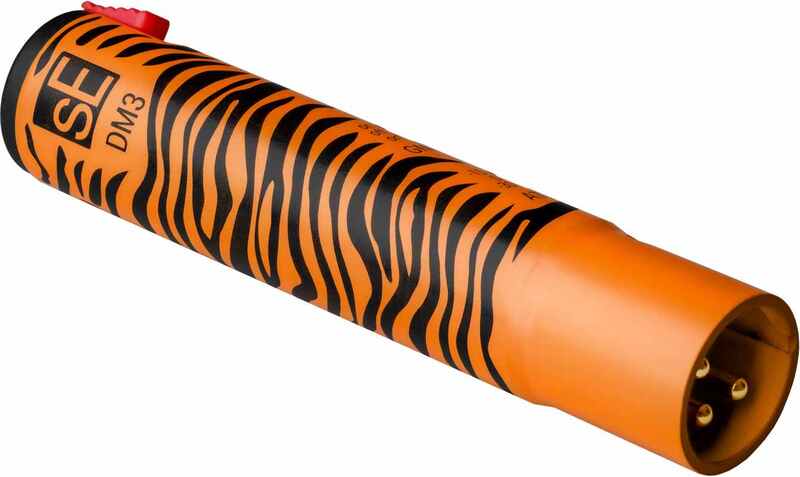

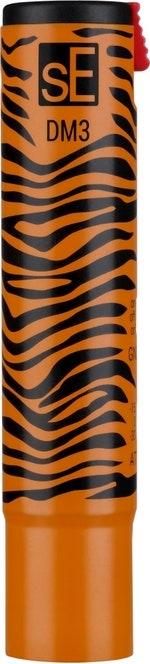

sE Electronics DM3 - Active Direct Box
Article number 1315913Active, inline DI with Ultra-HiZ input - A beast of a DI.
Active Inline Direct Box
Active, inline Direct Box with Ultra-HiZ input and an impressively compact design - in many ways, the DM3 will prove to be your key to great sound!
Recommeded to use for Electric guitar, bass guitar, piezo pickups, keyboard, synthesizers, drum machines, laptops.
- Ultra-HiZ input for getting the best out of your instrument
- Massive headroom for even the hottest instruments

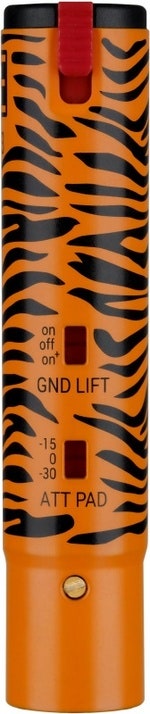

- A new standard to the ground lift switch
- Lockable ¼” input jack to prevent accidental disconnects
- Dedicated Class-A output buffer amplifier and premium finish
- Slim, all-metal discrete housing and gold XLR connectors
Specifications:
Power:
- Electrical Impedance: 86 Ohms
- Recommended Load Impedance: >1K Ohms
- Connectivity Input: 6.3 mm (1/4 in.) TRS jack
- Output: 3-pin male XLR connector
- Powering:48V Phantom Power (P48 according to IEC 61938)
Sound:
- Frequency range:10 Hz - 120 kHz (-0.3 dB)
- Current consumption:3.8 mA
- Max input level: (0.5% THD)19 / 34 / 49 dBV (9.0 / 51 / 285 V)
- Output noise level: 1 μV
Dimensions:
- Diameter: 20 mm
- Length: 95.5 mm
- Weight: 70 g
What's in the box:
- DM3

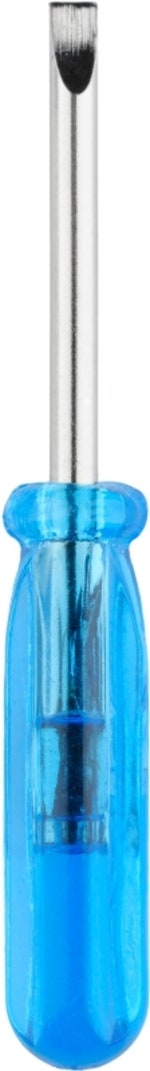

- Screwdriver

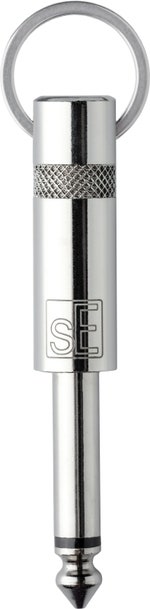

- sE 1/4" plug keychain
- sE Logo Sticker
- User manual
