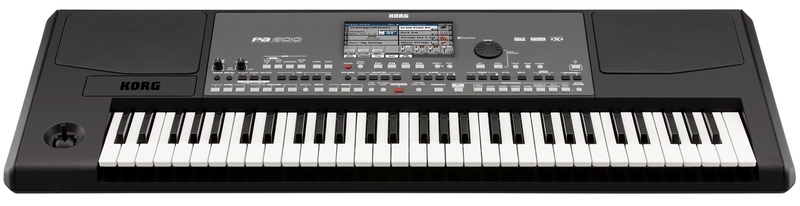

KORG Pa600 Arranger Keyboard

One very exciting feature added to the Pa600 is the option of purchasing musical sounds and styles particular to specific regions around the world. Up to 96MB of additional PCM allows many instruments to be accurately added to the Pa600 sound engine and used with styles that were developed to represent many of the popular musical styles of certain countries. Full details on the available options can be found at Korg.com

A limiter and final 4-band parametric EQ, have been added to the sound output of the Pa600. Everything can be processed by this powerful and musically refined EQ, easily adapting the sound to your musical taste or adjusting sound in a problematic live environment.

The Pa600 delivers a new set of deluxe styles, programmed by some of the leading arrangers in the world, each of whom worked according to their musical strengths. The result is hundreds of preloaded Styles that provide unparalleled realism and detail. Covering an expanded range of musical genres, the Pa600 provides styles for almost every occasion. If you require a special Style collection, simply record and edit your own styles on board.

The Pa600 is one of the easiest arrangers to carry around. While its size might appear compact, the power of the onboard, exceptionally high-quality custom designed amplification system is anything but small. The 2 x 15-watt amplifiers drive two loudspeakers in a bass-reflex box to generate a powerful listening experience.

With all the technological power that’s packed inside, it was vital that we also made the Pa600 easy to understand and use. Your experience using the Pa600 should be intuitive, musical, fast and fool proof. The panel layout has been simplified, and our graphical user interface utilizes an amazing Graphical Color Touch Screen, so you simply think, point and click for easy and intuitive use - RX Technology at work for you!

The player on board the Pa600 can read MIDI, KAR and MP3 files. It can also read lyrics and chords from most of these files, and add markers on-the-fly to MIDI files. Traditional score viewing is also available for those who prefer to read music.

The SongBook. This exciting feature was developed to make your life easier while playing live. The SongBook is a Musical Database that’s completely user programmable, containing all the settings needed to play a particular song. You only have to search for the title of the song you would like to play, select it and hit “Play”. The SongBook can use styles, MIDI files, or MP3s, and can immediately recall settings such as Song Title, Genre, Artist, Tempo, Volumes, Sounds, Muted Tracks, FX settings, Easy Edit, STS, Master Transpose and more. Everything that you need to play your song perfectly is in the SongBook; a useful musical feature that is unique to Korg.

SPECIFICATIONS:

• Keyboard: 61 keys with Velocity
• Sounds. Factory: More than 950 (including Stereo Piano and GM 2 Sounds), 64 Drum Kits. User: 256 Sounds, 128 Drum Kits
• Tone Generator: 128 Oscillators (max polyphony 128 voices) - Filters with Resonance
• PCM User Memory: 96 MB
• Effects & EQ: 4 Stereo Master FX / 125 Effects types, Three band EQ for each track – Articulations, Limiter - Master 4 band Parametric EQ
• Others:Dynamic Nuance Control (DNC) Technology, Full editing of Sounds and Drum Kits Realtime sound control using Assignable Switches
• Controllers: Joystick – 2 Assignable Switches
• Styles. Factory: More than 360 preloaded Styles, freely reconfigurable. User: Up to 1,200 available Style locations including the Favorite/User banks. Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Autofill, Synchro Start/Stop, Tap Tempo/Reset, Manual Bass, Bass Inversion, Memory, Accompaniment Mute, Snare & Kick Designation, STS Mode – Chord Sequencer
• Performance/STS: 320 Realtime Performance locations , STS: Memorize Realtime tracks, Up to 4 x Styles, up to 4 x SongBook entries
• Realtime Tracks: Four Keyboard tracks (Upper 1, 2, 3, Lower)
• Pads: 4 Pad tracks + Stop button – Pad Record
• Song Play:Single Player with Select, Start/Stop, Home, Rewind and Fast Forward controls, Jukebox function - Compatible with SMF (formats 0 and 1) and MP3 with Vocal Remover - Lyrics (compatible with CDG), Score, Marker
• Display: 7” 800 x 480 TFT Graphical Color TouchView
• Sequencer: Quick Record (Backing Sequence), Multitrack and Step Record functions, Full featured sequencer - 16 tracks - Up to 100.000 events - SMF format.
• Song Book: Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes - User-definable custom lists - Filtering option
• Compatibility for Sound Data “i-Series": Styles only. “Pa series”: Style, Performance, Sound, PCM, Song, SongBook and Pad
• General Controls:Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble, Octave Transpose, Master Transpose, Fade In/Out, Tempo Lock, Style Change - Quarter Tone Arabic Scale, User Scale memorized inside Performance/STS, Search, Lyrics, Score, Maker, Dial, Tempo, Metronome, Split
• Connections: Damper Pedal, Assignable Pedal/Footswitch. Line Out: Unbalanced Jack Left/Mono, Right, Headphones. Line In:2 Unbalanced Line In Jacks, MIDI:In, Out Midi connectors - USB to Midi using the USB Device port, Individual track assignment - 8 user definable MIDI Preset. USB:Type A (TO DEVICE) x 1: 2.0 Hi Speed, Type B (TO HOST) x 1: 2.0 Hi Speed
• Speaker System. Amplification:15W x 2, 100 mm x 2 Double Cone Speakers in Bass Reflex Box
• Power Supply: AC 100-240 V, Power Consumption: 20 Watt
• Dimensions (W x D x H): 1,030 x 378 x 127 mm (without music rest)
• Weight: 11 kg (without music rest)
• Accessories: Owner’s Manual, Music Stand, Accessory DVD (It includes Video Manuals), AC Cable
• Options: Expression/Volume Pedal (KORG EXP-2, Damper Pedal (KORG DS-1H)
